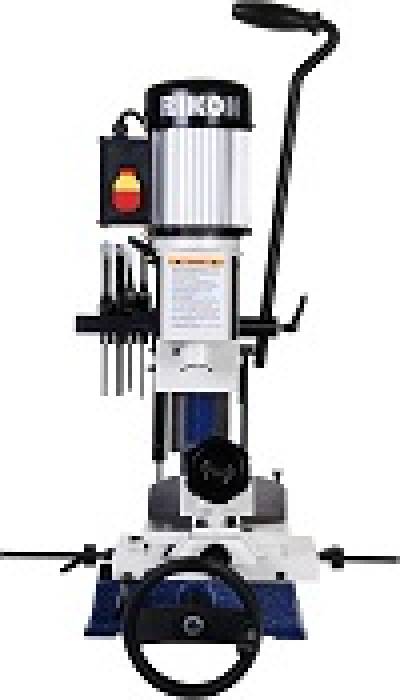

Manufacturer: Rikon

Model: 34-260

Owner: Bodgery

Chuck Capacity: 1/2 in.

Chisel Shank Diameter: 1 in. (with 5/8 in. and 3/4 in. bushings included)

Chisel Size Range: 1/4 in. to 5/8 in.

Max. Chisel Stroke: 4-3/4 in.

Table Size (Width x Depth): 7 in x 8-1/4 in.

Max. Clamping/Hold Down Width: 3-7/8 in.

Max. Height Under Chisel: 5 in.

Table Movement Left to Right: 6-5/8 in.

Table Movement Front to Back: 4 in.

Fence Size: 2 in. Height x 7-1/16 in. Long

Benchtop Mortiser, Rikon 34-260 Manual, Parts List (6.1 MB)
