Manufacturer: Festool

Model: FSV/2

Owner: Bodgery

Function:

• Two connectors for securely connecting two guide rails for long workpieces

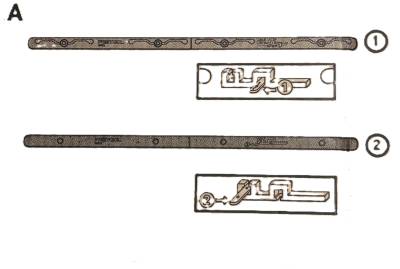

• The laser engraving helps to ensure that the two connectors are used in the correct order
• With a self-aligning function for connecting two guide rails for long workpieces so that the rails are straight

Festool FSV/2 Guide Rail Connectors Parts List (317.3 KB)

YouTube: Connecting track saw guide rails (0.59 sec)

Festool Guide Rail Connectors Checklist (To Connect Two Guide Rails) (24.9 KB)

Festool Guide Rail Connectors Checklist: (To Connect Two Guide Rails)

1. Use Allen Key or hex wrench in stored in the handle of the track saw.

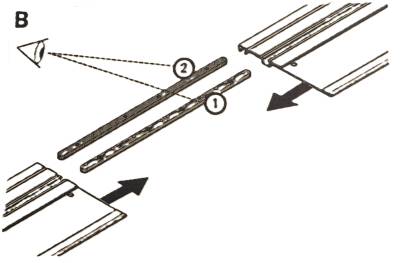

2. Place connectors at its half way point. Snug screws to hold in place.
3. Warning: be careful unscrewing screws on slotted connector. Screws easily fall off and can be lost.
4. Leave daylight gap (<1/64“) between two ends of guide rails – guide rails are not cut to perfect 90 degrees.

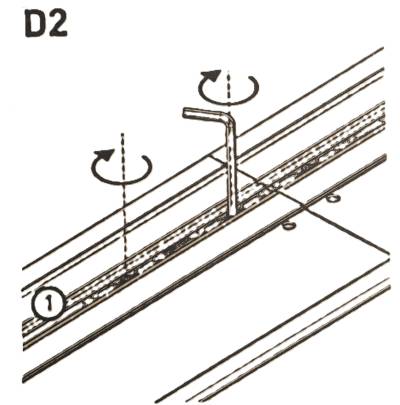

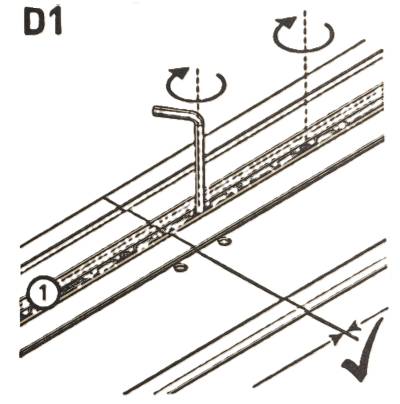

5. Tighten first the bottom-side connector to straighten & align. Do not over tighten.

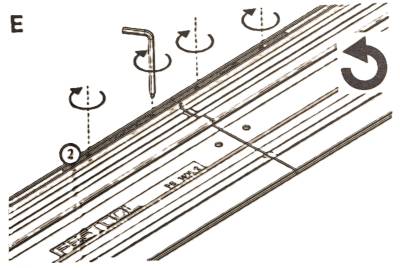

6. Tighten last the top-side connector to stiffen the connection. Do not over tighten.
7. At end, return Allen Key or hex wrench to the handle of the track saw.
