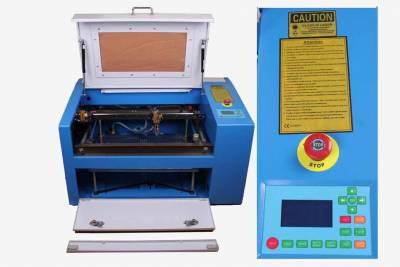

Laser Cutter/Engraver 50w
Make/Model
Chinese NoBrand, 50w
Cost To Use
$10/hr of cutting time
Donation Box next to Device
Specs
- 50W, water cooled, CO2 laser
- Cylinder Rotary Attachment
- Supports multiple graphic formats (PLT, DXF, BMP, JPG, GIF, PGN, TIF).
- Equipped with DSP Control System for CorelDraw/AutoCAD
- Compatible with WIN7/Vista/XP
- Laser power: 50W
- Laser type: Hermetic CO2 glass tube
- Power supply： AC220±10% 50HZ/ AC110±10% 50HZ
- Working area: 300mm X 500mm
- Max moving speed: 500mm/s
- Locating precision: <0.01mm
- Min shaping character: Character: 2x2mm, Letter: 1x1mm
- Operating temperature: 5-40 degrees Celsius
- Resolution ratio: ≤4500dpi
- Control configuration: DSP
- Data transfer interface: USB(offline)
- System environment: WINDOWS 2000/WINDOWS XP/ WIN7/VISTA
- Cooling: Water Cooling and protection system
- Compatible software: CorelDraw, AutoCAD
- Parts: Cylinder Rotary Attachment
- Dimensions： 1020×650×630 mm
- Net Weight: 65KG
Current Status
Initially set up, we're learning how to use it and will be ready to train members on its use soon!
Location
Currently: Wood Shop-ish
On lend from
JT Smith
History
08/08/14 - Arrived at Makerspace
08/??/14 - Ready to Use
Notes
MUST BE TRAINED to use it FIRST
Owner's Manual
QR Code
Coming Soon…
